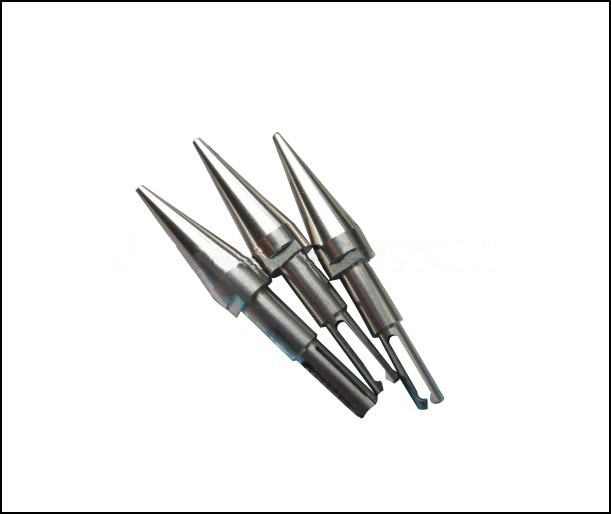

Smt sanyo tcm3000 z11 nozzle (6300529517) used in pick and place machine

Smt sanyo tcm3000 z11 nozzle (6300529517) used in pick and place machine

Smt sanyo tcm3000 z11 nozzle (6300529517) used in pick and place machine

Product Details:

Place of Origin: Japan
Brand Name: Sanyo
Model Number: Sanyo nozzles tcm3000 z11

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard package
Delivery Time: 3-7 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 1000/month
Contact Now
Detailed Product Description
Part Number: 6300529517

Smt sanyo tcm3000 z11 nozzle (6300529517) used in pick and place machine

SANYO TCM 3000 SMT NOZZLE
Part Number        Description
6300529586        TCM SANYO SMT NOZZLE 3000 - Ø 0.6 / Ø 0.4
6300523609        TCM SANYO SMT NOZZLE 3000 -Ø 1.5 / Ø 0.5
6300529616        NZ. Ø 1.8 / Ø 0.5
6300529517        NZ. Ø 0.9 / Ø 0.7
6300529579        NZ. Ø 1.3 / Ø 0.9
6300529524        NZ. Ø 1.8 / Ø 1.1
6300529548        NZ. Ø 3.0 / Ø 2.0
6300529531        NZ. Ø 6.0 / Ø 4.5
6300529555        NZ. Ø 1.3 / Ø 0.9 (MELF)
6300529562        NZ. Ø 2.5 / Ø 1.2 (MELF)

SANYO V820/V822 SMT NOZZLE
Part Number        Description
6300298673        V820 / V822 NZ. Ø 0.5
6300322590        V820 / V822 NZ. Ø 0.9
6300322606        V820 / V822 NZ. Ø 1.3
6300298604        NZ. Ø 1.8
6300298611        NZ. Ø 1.8
6300298635        NZ. Ø 3.0
6300298628        NZ. Ø 6.0
6300310726        NZ. Ø 1.3 (MELF)
6300298659        NZ. Ø 2.5 (MELF)

SANYO TCM-60 TCM-V1000 SMT NOZZLE
Part Number   Description
N001             NZ. V
N002            NZ. Ø 1.8
N003            NZ. Ø 4.0
N004            NZ. Ø 6.0
N005             NZ. Ø 1.8 / 6 HOLES
N81            V1000 NZ. Ø 0.6 / Ø 0.3
N11            V1000 NZ. Ø 0.9 / Ø 0.6
N71            NZ. Ø 1.3 / Ø 0.8
N21            NZ. Ø 1.8 / Ø 1.0
N41            NZ. Ø 3.0 / Ø 2.0
N31            NZ. Ø 6.0
N51            NZ. Ø 1.3 (MELF)
N61            NZ. Ø 2.5

Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the same. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
