SMT Samsung nozzles CP45 CN030 Nozzle J9055133B used in pick and place machine

SMT Samsung nozzles CP45 CN030 Nozzle J9055133B used in pick and place machine

SMT Samsung nozzles CP45 CN030 Nozzle J9055133B used in pick and place machine

Product Details:

Brand Name: Samsung
Model Number: Samsung nozzles CP45 CN030

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard package
Delivery Time: 3-7 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000/month
Contact Now
Detailed Product Description

SMT Samsung nozzles CP45 CN030 Nozzle J9055133B used in pick and place machine

Samsung CP45 SMT NOZZLE
Part Number    Description
J7055180F    CP45 PICK UP NOZZLE - Ø0.8/Ø0.28 (TN03)
J7055246A    CP45 PICK UP NOZZLE - Ø0.75/Ø0.38 (TN04)
J7055267A    CP45 PICK UP NOZZLE - Ø1.2/Ø0.65 (TN065)
J7055131C    CP45 PICK UP NOZZLE - Ø2.2/Ø1.4 (TN14)
J7055132C    CP45 PICK UP NOZZLE - Ø3.6/Ø2.2 (TN22)
J7055133C    CP45 PICK UP NOZZLE - Ø6.2/Ø4.0 (TN40)
J7055135C    CP45 PICK UP NOZZLE - Ø9.0 / Ø7.5 (TN75)
J7055137C    CP45 PICK UP NOZZLE - Ø12.7/Ø11.0 (TN110)

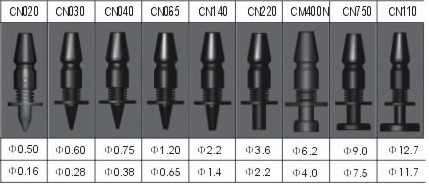

Samsung CP45 SMT NOZZLE
Part Number    Description
J90551006A    CP45 NEO PICK UP NOZZLE - Ø0.5/Ø0.16 (CN020)
J9055133B     CP45 NEO PICK UP NOZZLE - Ø0.8/Ø0.28 (CN030)
J9055134B     CP45 NEO PICK UP NOZZLE - Ø0.75/Ø0.38 (CN040)
J9055135B     CP45 NEO PICK UP NOZZLE - Ø1.2/Ø0.65 (CN065)
J9055138B     CP45 NEO PICK UP NOZZLE - Ø2.2/Ø1.4 (CN140)
J9055139B     CP45 NEO PICK UP NOZZLE - Ø3.6/Ø2. (CN220)
J9055258A     CP45 NEO PICK UP NOZZLE - Ø6.2/Ø4.0 (CN400)(Disk ø9.8)
J9055218A     CP45 NEO PICK UP NOZZLE - Ø6.2/Ø4.0 (CN400N)(Disk ø13.4)
J9055142B     CP45 NEO PICK UP NOZZLE - Ø9.0/Ø7.5 (CN750) (Disk ø13.4)
J9055143B     CP45 NEO PICK UP NOZZLE - Ø12.7/Ø11 (CN110) (Disk ø15.6)

Samsung CP60 SMT NOZZLE
Part Number     Description
J9055069B    CP60 PICK UP NOZZLE - Ø0.8/Ø0.3 (TN030)
J9055070B    CP45 NEO PICK UP NOZZLE - Ø0.75/Ø0.38 (TN045)
J9055071B    CP45 NEO PICK UP NOZZLE - Ø1.2/Ø0.65 (TN070)
J9055072C    CP45 NEO PICK UP NOZZLE - Ø2.2/Ø1.4 (TN140)
J9055073C    CP45 NEO PICK UP NOZZLE - Ø3.6/Ø2.2 (TN220)
J9055074C    CP45 NEO PICK UP NOZZLE - Ø6.2/Ø4.0 (TN400)

Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the same. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.

Data sources:Samsung CP45 CN030 nozzles
