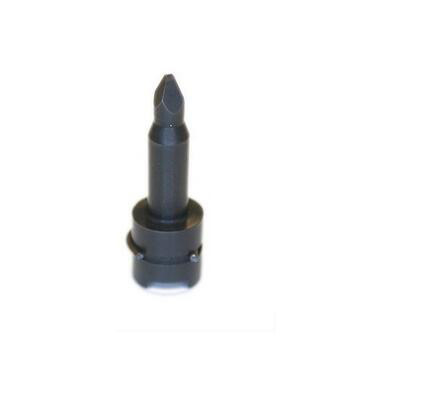

Smt Panasonic nozzles MSR HT VVS nozzle used in pick and place machine

Smt Panasonic nozzles MSR HT VVS nozzle used in pick and place machine

Smt Panasonic nozzles MSR HT VVS nozzle used in pick and place machine

Product Details:

Place of Origin: Japan
Brand Name: Panasonic
Model Number: Panasonic nozzles MSR HT VVS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard package
Delivery Time: 3-7 working days
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 3000/month
Contact Now
Detailed Product Description

Panasonic smt nozzles models:
Panasonic MSR SMT NOZZLE
Part Number       Description
10468S0002        MSR - SMT NOZZLE - VVS (0.84 X 0.60)
10468S0003        - NZ. - VS (1.0 X 0.64)
10468S0004        -NZ. - S (1.6 X 1.06)
1046710134        -NZ. - M (1.60mm)
10467S0001        -NZ. - L (3.00mm)
10467S0002        -NZ. - LL (5.50mm)
10467S0003        -NZ. - LLL (8.00mm)
10467101181 2        HOLDER/SLIDE SHAFT

Panasonic MV2F MV2C MV2 SMT NOZZLE
Part Number         Description
102247818103        MV2F Panasonic SMT NOZZLE - SS (1.4X0.8) (DIAMOND COATING)
102247848603        MV2F - MA (1.8X1.2) (DIAMOND COATING)
1022478181          MV2C Panasonic SMT NOZZLE - SS 'X' (1.4X0.8) (DIAMOND COATING)
1022478186          MV2C - RSS (1.2X0.7) (DIAMOND COATING)
1042875151          MV2C - SA (1.0X0.8) (DIAMOND COATING)
0175015K05M CY      SMT NOZZLE MV2 # 1 NZ. - Ø 0.5 (TAPERED TIP)
0175015K09          MV2 # 1NZ. - Ø 0.8 (TAPERED TIP)
10201530000         MV2 # 2NZ. - Ø 1.2
1020179561          MV2 # 2NZ. - Ø 1.6
1020106016          MV2 # 3 (L)NZ. - Ø 2.0
1020179490          MV2 # 3 (L)NZ. - Ø 2.5
1020179500          MV2 # 3 (L)NZ. - Ø 3.0
1020175011          MV2 # 4 (LL)NZ. - Ø 4.0
102017501101        MV2 # 4 (LL)NZ. - Ø 5.5
1020247902201       MV2 # 5 (LLL)NZ. - Ø 8.0


Panasonic MV MQ MK SMT NOZZLE
Part Number        Description
1020179380 K       SMT NOZZLE MV # 1NZ. A - Ø 0.8 (WITH REFLECTOR)
1020179381         MV # 2N . B - Ø 1.2
1020179381 K       MV # 2NZ. B - Ø 1.2 (WITH REFLECTOR)
1020179561         MV # 2NZ. B - Ø 1.6
1020106016         MV # 3NZ. C - Ø 2.0
1020179490         MV # 3NZ. C - Ø 2.5
1020179500         MV # 3NZ. C - Ø 3.0
1020153051         MV # 3NZ. C - Ø 3.5
1020179065         MV # 4NZ. D - Ø 4.0
1020153061         MV # 4NZ. D - Ø 5.5
1020106023 04      MV # 5NZ. E - Ø 8.0
X70513010          MQ - Ø5.0
X70513011          MQ NZ. - Ø7.0
X70513012          MQ NZ. - 5 HOLES (SMALL)
X70513013          MQ NZ. - 5 HOLES (BIG)
6188021            MK NZ. - 1 HOLE
6188593            MK NZ. - 3 HOLE
6189336            MK NZ. - L


Panasonic MPA MPAG3 MPAV SMT NOZZLE
Part Number        Description
1015679101        MPA SMT NOZZLE CENTRALING CHUCK - S (3 HOLES)
1015679201        MPA SMT NOZZLE CENTRALING CHUCK - M (SINGLE HOLE)
1015689214        MPA NZ. CENTRALING CHUCK - L
1018520412        MPA NZ. - S (SPECIFY:4X4/5X5/6X6)
1015660021        MPA NZ. - M (10X10)
1018520310        MPA NZ. - L (12x12)
104590801403      MPAG3 NZ. (1.7 X 1.2)
104700867002      MPAG3 NZ. (1.7 X 1.5)
109700860-02      MPAG3 NZ. M (16 X 2.1
104590862403      MPAG3 NZ. (4.0 X 3.4)
104593840         MPAG3 NZ. (2.0 X 1.0)
1047008600AD      MPAG3 NZ. (1.0 X 0.8) SA
04590801209       MPAG3 FLANGE/HOUSING
1040308610        MPAV NZ. - SS (1.5 X 1.0)
1040308620        MPAV NZ. - S (1.8 X 1.2)
1040308630        MPAV NZ. - M (4.0 X 3.4)
1040308670        MPAV NZ. - S (CONNECTOR)
1040308680        MPAV NZ. - M (CONNECTOR)
1040318750        MPAV NZ. - QFP-PAD NZ.
1040338340        MPAV NZ. - M (PERMEATION)

Panasonic MSH II MCF MMC MSH III SMT NOZZLE
Part Number        Description
101878181001       MSH 2 NZ. - S (DIAMOND COATING) (1.5X1.0)
102378926502       NZ. - S (DIAMOND COATING) (1.8X1.2)
101878181002C      NZ. - S (CARBIDE TIP) (1.5X1.0)
1021206250AC       NZ. - M
1021206240AD       NZ. - L (ANGLE DISK)
1023810350         NZ. - L (FLAT DISK)
1020806005 01      HOOK
10443101004        MSH III- S (1.5 X 1.0)
10443101004M CY    - S (1.8 X 1.2)
104431020002       - M (LARGE DISK)
1083408601         - S Ø5.5 / Ø3.9 (1.0 X 0.8)
1083498002         - M Ø3.0 / Ø2.4
1083498031         - L Ø5.5 / Ø4.5
108349CY76 CY      - LLL Ø7.0 / Ø6.0
X01B40035          1.0 X 0.8

Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the same. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
