Place of Origin: | Japan |
Brand Name: | Panasonic |
Model Number: | PANASONIC FEEDER |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Normal package |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T,Paypal,Western Union |
Supply Ability: | 1000/month |

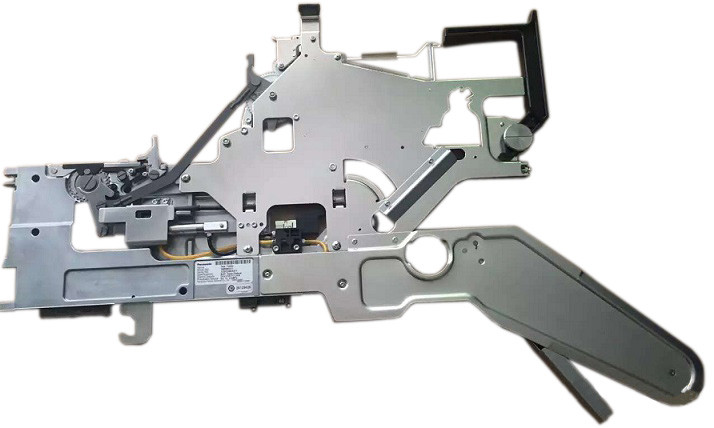

SMT Panasonic BM123 BM221 MSF 44mm Feeder FAE4400MA300 for pick and place machine
PANASONIC BM123 / BM221 / BM231 / MSF Series Feeders:
BM 8W*2P 10896BF101 Double
BM 8W*2P N610014231AA Double
BM 8W*4P 10896BF106 Double
BM 8W*4P N610016060AA Double
MSF 8W*2P 10896BF061 Double
MSF 8W*4P 10896BF066 Double
BM 8W*2P 10896BF074 Single
BM 8W*4P 10896BF071 Single
BM 12MM FAE1200MA300
BM 16MM FAE1600MA300
BM 24MM FAE2400MA300
BM 32MM FAE3200MA300
BM 44MM FAE4400MA300
BM 56MM FAE5600MA300
Panasonic CM/NPM/AM SMT Feeders:
4mm N610117446AB For 01005
8mm N610031080AA For 0201
8mm KXFW1KS5A00 with sensor
KXFW1KSBA00 without sensor
12/16mm KXFW1KS6A00 with sensor
KXFW1KSCA00 without sensor
24/32mm KXFW1KS7A00 with sensor
KXFW1KSDA00 without sensor
N610004577AA depth21mm
N610133537AA depth26mm
44/56mm KXFW1KS8A00 with sensor
KXFW1KSEA00 without sensor
KXFW1L0YA00 depth21mm
N610133539AA depth26mm
72mm KXFW1KS9A00 with sensor
KXFW1KSFA00 without sensor
KXFW1L0ZA00 depth21mm
88mm KXFW1L10A00 depth21mm
Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. “Tombstoning” of parts
4. Flipped parts
Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the SAMSUNGe. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
