Place of Origin: | Japan |
Brand Name: | Panasonic |
Model Number: | MSR HT S panasonic nozzle |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Standard package |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T,Paypal,Western Union |
Supply Ability: | 3000/month |
Panasonic smt nozzles models:

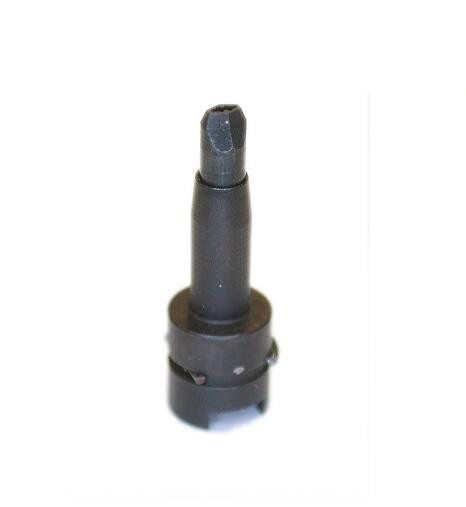

Panasonic MSR SMT NOZZLE
Part Number Description
10468S0002 MSR - SMT NOZZLE - VVS (0.84 X 0.60)
10468S0003 - NZ. - VS (1.0 X 0.64)
10468S0004 -NZ. - S (1.6 X 1.06)
1046710134 -NZ. - M (1.60mm)
10467S0001 -NZ. - L (3.00mm)
10467S0002 -NZ. - LL (5.50mm)
10467S0003 -NZ. - LLL (8.00mm)
10467101181 2 HOLDER/SLIDE SHAFT
Panasonic MV2F MV2C MV2 SMT NOZZLE
Part Number Description
102247818103 MV2F Panasonic SMT NOZZLE - SS (1.4X0.8) (DIAMOND COATING)
102247848603 MV2F - MA (1.8X1.2) (DIAMOND COATING)
1022478181 MV2C Panasonic SMT NOZZLE - SS 'X' (1.4X0.8) (DIAMOND COATING)
1022478186 MV2C - RSS (1.2X0.7) (DIAMOND COATING)
1042875151 MV2C - SA (1.0X0.8) (DIAMOND COATING)
0175015K05M CY SMT NOZZLE MV2 # 1 NZ. - Ø 0.5 (TAPERED TIP)
0175015K09 MV2 # 1NZ. - Ø 0.8 (TAPERED TIP)
10201530000 MV2 # 2NZ. - Ø 1.2
1020179561 MV2 # 2NZ. - Ø 1.6
1020106016 MV2 # 3 (L)NZ. - Ø 2.0
1020179490 MV2 # 3 (L)NZ. - Ø 2.5
1020179500 MV2 # 3 (L)NZ. - Ø 3.0
1020175011 MV2 # 4 (LL)NZ. - Ø 4.0
102017501101 MV2 # 4 (LL)NZ. - Ø 5.5
1020247902201 MV2 # 5 (LLL)NZ. - Ø 8.0
Panasonic MV MQ MK SMT NOZZLE
Part Number Description
1020179380 K SMT NOZZLE MV # 1NZ. A - Ø 0.8 (WITH REFLECTOR)
1020179381 MV # 2N . B - Ø 1.2
1020179381 K MV # 2NZ. B - Ø 1.2 (WITH REFLECTOR)
1020179561 MV # 2NZ. B - Ø 1.6
1020106016 MV # 3NZ. C - Ø 2.0
1020179490 MV # 3NZ. C - Ø 2.5
1020179500 MV # 3NZ. C - Ø 3.0
1020153051 MV # 3NZ. C - Ø 3.5
1020179065 MV # 4NZ. D - Ø 4.0
1020153061 MV # 4NZ. D - Ø 5.5
1020106023 04 MV # 5NZ. E - Ø 8.0
X70513010 MQ - Ø5.0
X70513011 MQ NZ. - Ø7.0
X70513012 MQ NZ. - 5 HOLES (SMALL)
X70513013 MQ NZ. - 5 HOLES (BIG)
6188021 MK NZ. - 1 HOLE
6188593 MK NZ. - 3 HOLE
6189336 MK NZ. - L
Panasonic MPA MPAG3 MPAV SMT NOZZLE
Part Number Description
1015679101 MPA SMT NOZZLE CENTRALING CHUCK - S (3 HOLES)
1015679201 MPA SMT NOZZLE CENTRALING CHUCK - M (SINGLE HOLE)
1015689214 MPA NZ. CENTRALING CHUCK - L
1018520412 MPA NZ. - S (SPECIFY:4X4/5X5/6X6)
1015660021 MPA NZ. - M (10X10)
1018520310 MPA NZ. - L (12x12)
104590801403 MPAG3 NZ. (1.7 X 1.2)
104700867002 MPAG3 NZ. (1.7 X 1.5)
109700860-02 MPAG3 NZ. M (16 X 2.1
104590862403 MPAG3 NZ. (4.0 X 3.4)
104593840 MPAG3 NZ. (2.0 X 1.0)
1047008600AD MPAG3 NZ. (1.0 X 0.8) SA
04590801209 MPAG3 FLANGE/HOUSING
1040308610 MPAV NZ. - SS (1.5 X 1.0)
1040308620 MPAV NZ. - S (1.8 X 1.2)
1040308630 MPAV NZ. - M (4.0 X 3.4)
1040308670 MPAV NZ. - S (CONNECTOR)
1040308680 MPAV NZ. - M (CONNECTOR)
1040318750 MPAV NZ. - QFP-PAD NZ.
1040338340 MPAV NZ. - M (PERMEATION)
Panasonic MSH II MCF MMC MSH III SMT NOZZLE
Part Number Description
101878181001 MSH 2 NZ. - S (DIAMOND COATING) (1.5X1.0)
102378926502 NZ. - S (DIAMOND COATING) (1.8X1.2)
101878181002C NZ. - S (CARBIDE TIP) (1.5X1.0)
1021206250AC NZ. - M
1021206240AD NZ. - L (ANGLE DISK)
1023810350 NZ. - L (FLAT DISK)
1020806005 01 HOOK
10443101004 MSH III- S (1.5 X 1.0)
10443101004M CY - S (1.8 X 1.2)
104431020002 - M (LARGE DISK)
1083408601 - S Ø5.5 / Ø3.9 (1.0 X 0.8)
1083498002 - M Ø3.0 / Ø2.4
1083498031 - L Ø5.5 / Ø4.5
108349CY76 CY - LLL Ø7.0 / Ø6.0
X01B40035 1.0 X 0.8
Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the same. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
