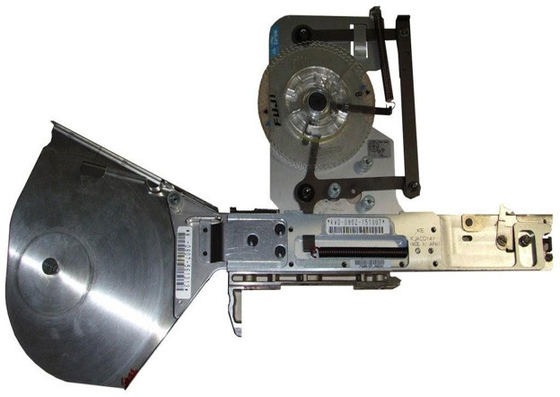

SMT Fuji CP6 8*2mm paper feeder used in pick and place machine

SMT Fuji CP6 8*2mm paper feeder used in pick and place machine

FUJI NXT Feeder models:
Part number        Description
KT08C 325898        FUJI NXT feeder 8MM generation I
KT8BE 041970        FUJI NXT feeder 8MM generation II
KT12A 002843        FUJI NXT feeder 12mm Ⅰ generation
KT12C 032742        FUJI NXT feeder 12mm Ⅱ generation
KT16A 043065        FUJI NXT  feeder 16mm Ⅰgeneration
KT16A 016483        FUJI NXT feeder 16mm Ⅰ generation
KT16C 026893        FUJI NXT feeder 16mm Ⅱ generation
KT24A 017067        FUJI NXT feeder 24mm
KT32A 006371        FUJI NXT feeder 32mm
KT44L 002519        FUJI NXT feeder 44mm

FUJI NXT/NXT II/NXT III/XPF/AIMEX SMT Feeder:
Model            Description
4MM             W04b / W04f
8MM             W08 / W08b / W08c / W08f / W08n
12MM             W12 / W12c
16MM            W16 / W16c
24MM            W24 / W24c
32MM            W32 / W32c
44MM            W44 / W44c
56MM            W56 / W56c
72MM            W72
88MM            W88

Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. “Tombstoning” of parts
4. Flipped parts

Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the SAMSUNGe. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
