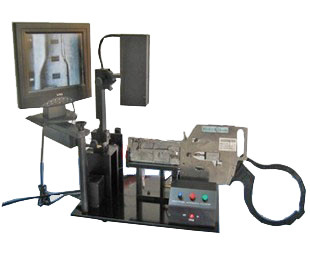

SMT I-PULSE Feeder Calibration JIG
Dimension:500 x 350 x 550 mm , L x W x H
Type:Electric / Pneumatic
Monitor : 12” LED display, with cross mark
Camera : CCD, 50 times magnification
Feeder Calibration JIG Feature:
1.It is essential for this equipment that enhanced productivity , installation and quality improvement
2.As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.
3.The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss
Convenience in use:
The acquisition for the rectangular coordinate of X-Y direction.
Check for the existence, transformation, user in the feeder
The installation is to euip it with actual device and consolidation in feeder base
Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis
The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
The simple calibration for removing or taking feeder easily
It is correction as measurement with CCD Camera.
Timer control make it pssible to change the IC pick-u time.
The use pressure is able to control in the regulator and air cylinder.
Verification and correction available worker`s convenience and well carriage by the work desk.
